Smart Full Detection & Auto Return

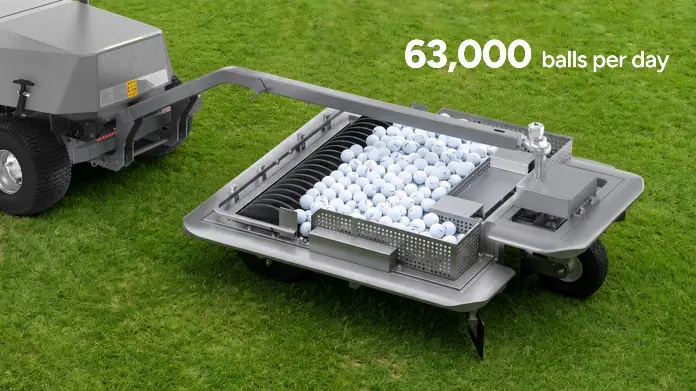

RM21P collects up to 63,000 balls per day for high-volume driving range operations and automatically returns to the unloading area when its basket is full.

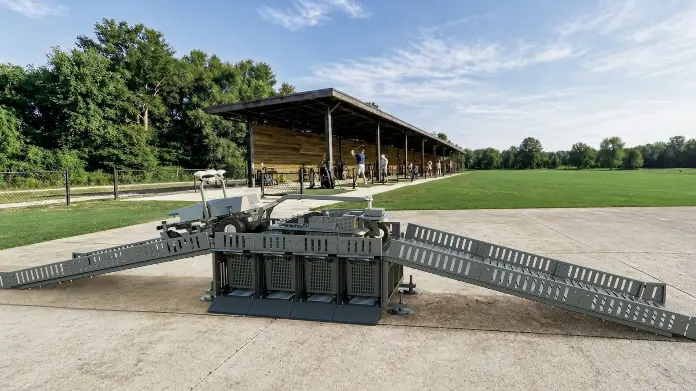

Unload automatically at the station
Collected balls are unloaded at the station, keeping the workflow moving with less operator intervention.
Reduce Costs, Boost Efficiency
Fully autonomous, silent ball collection lowers labor requirements and improves operational efficiency — without disrupting golfers.
Always on. Always picking.
The BP02 Ball Picker Kit turns Turf Ranger into an autonomous ball-picking solution for golf driving ranges, while preserving mowing capability on the same platform.
SPECS
Operating Performance
Picking width
900 mm / 35.4 in.
Max Picking Capacity per Hour
3,000 golf balls
Max Daily Picking Capacity
Up to 63,000 balls (based on 21 operating hours)
Max Picking Time per Charge
12 h
Max Picking Capacity per Charge
36,000 balls
Basket count
1
Capacity per Basket
1,000 golf balls
Complete Unit
Weight
120 kg (264.6 lb)
Dimensions
1860 × 1275 × 610 mm (73.2 × 50.2 × 24 in.)
IP rating
IPX4
Operating temperature
0–45°C
