Turf Ranger Versatile Robotic Mower

93,600 m²
in
3 Days

Higher Efficiency. Lower Costs.

Boost operational ROI by automating repetitive tasks, so your team can focus on what matters most.



One machine. Multiple jobs.

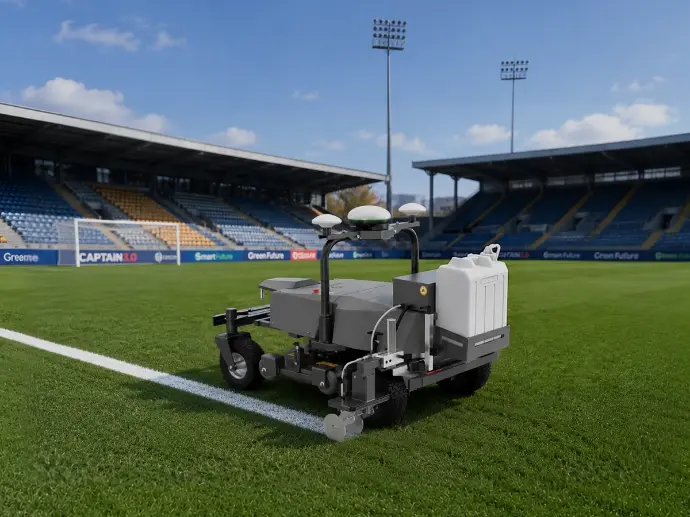

LM03 Line Marker Kit

Learn More

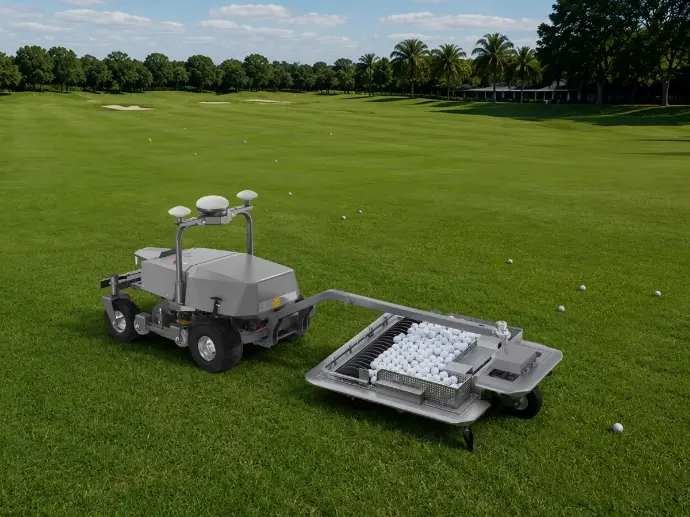

BP02 Ball Picker Kit

Learn More

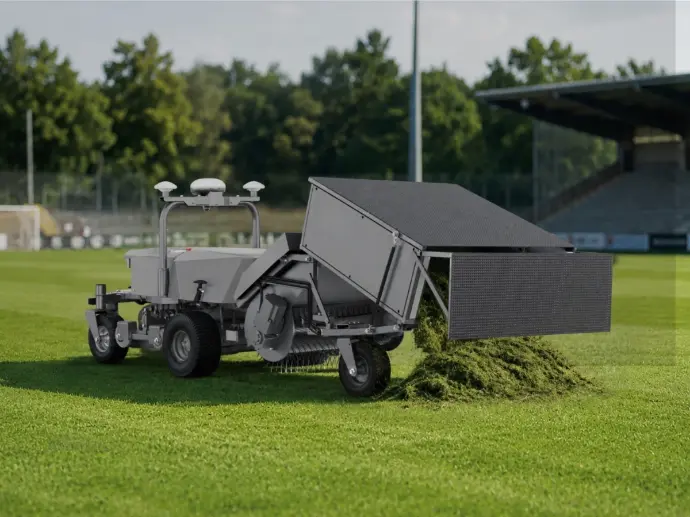

GC01 Grass Collector Kit

Learn More

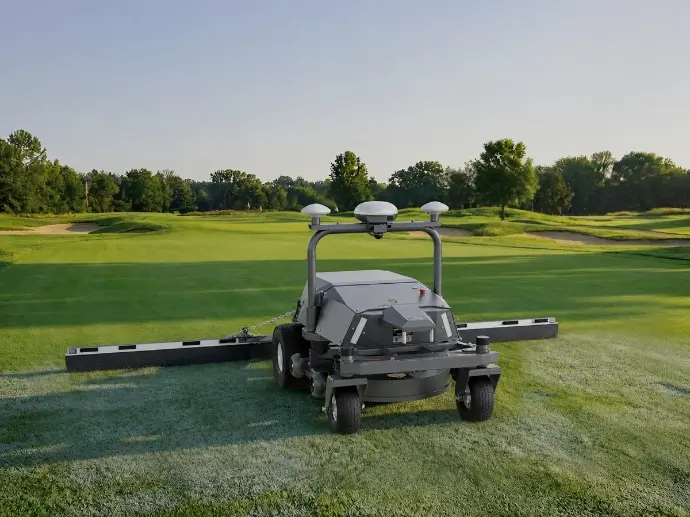

DB01 Dew Brush Kit

Learn More

Smarter Control for Complex Mowing

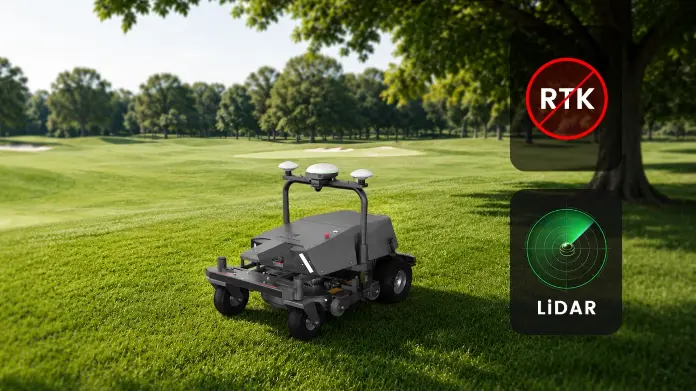

No signal worries
RTK + LiDAR fusion ensures reliable performance even under trees or in signal-challenging areas.

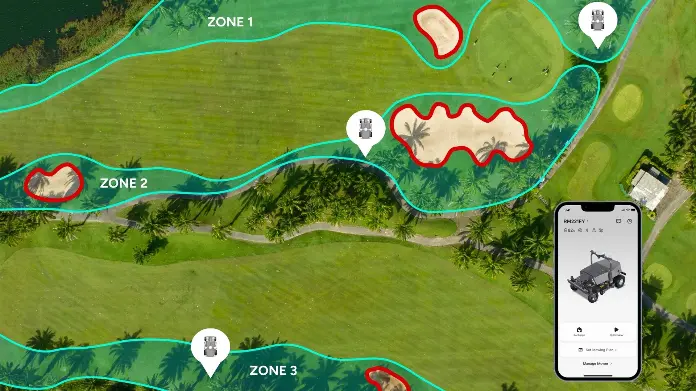

Multi-zone management
Plan, manage, and monitor multiple zones in the app, and complete mowing across different areas in a single task to save time and simplify turf management.

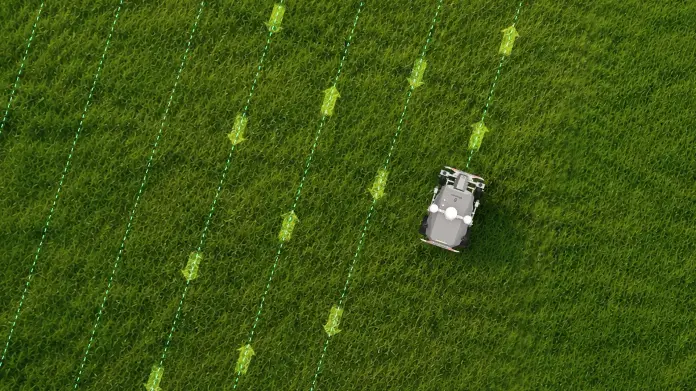

Smart path planning
Automatically plans efficient mowing routes with built-in precision algorithms, reducing manual effort for routine mowing tasks. — no more range anxiety.

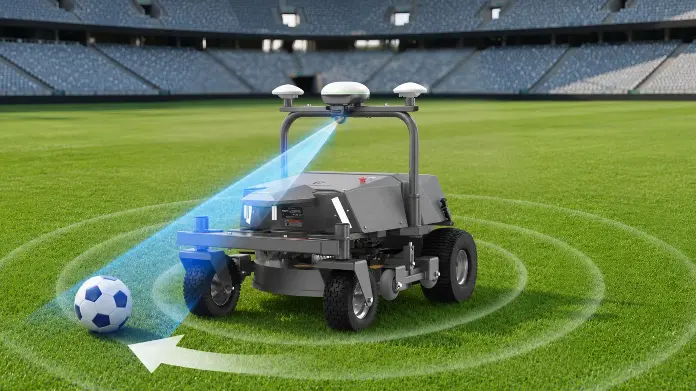

Multi-layer safety protection
Combine real-time 360° LiDAR obstacle detection with front and rear physical bumpers, ensuring safer autonomous operation.

Built for Uneven Turf

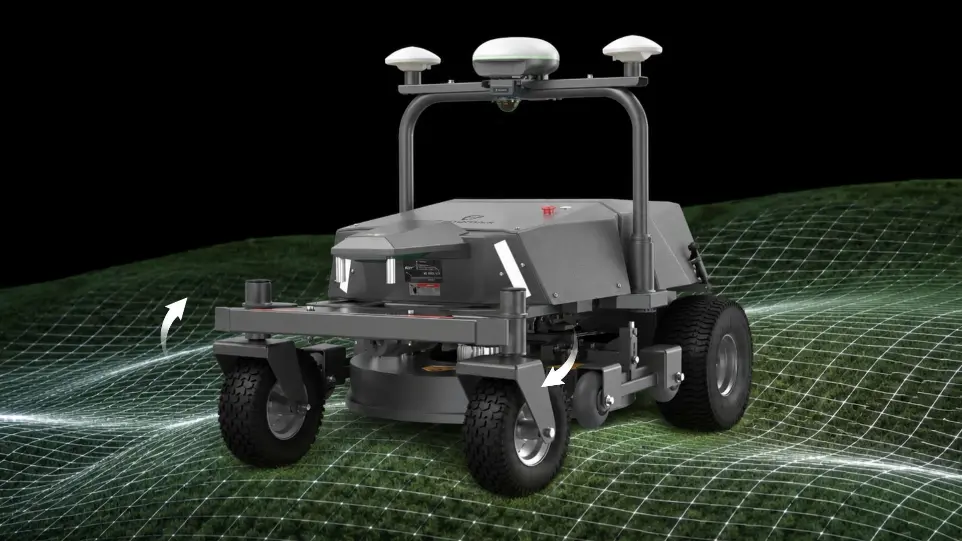

Front suspension chassis for stable operation

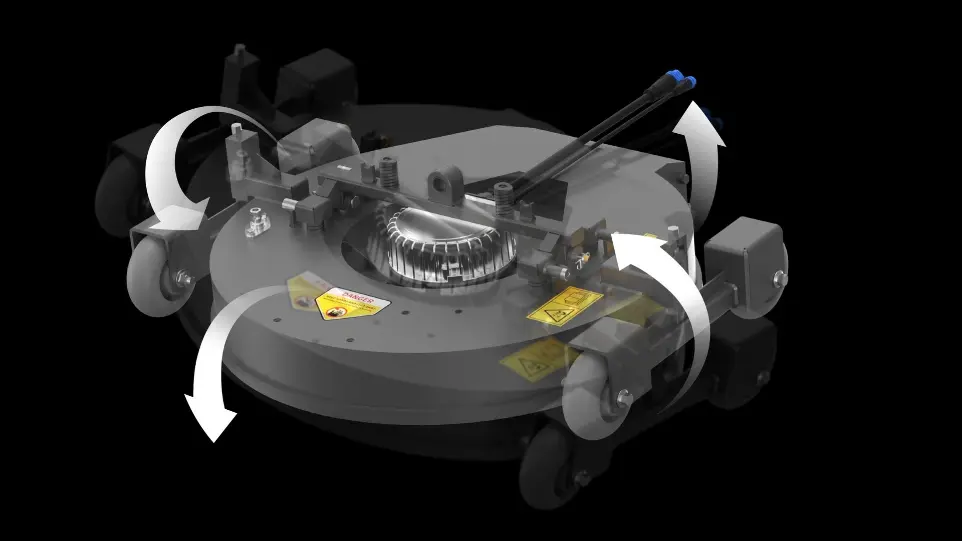

Floating cutting deck for consistent cutting
Ensures stable operation on uneven terrain, providing a smooth mowing experience.
Automatically follows ground contours on uneven surfaces for a cleaner, more consistent cut with less turf scalping.

The Turf Ranger works seamlessly with N10 CORS, S2 Max and GolfMind, enabling precise mapping, smart management, and efficient mowing across diverse field conditions.

Golf Course

Robotic Workflow

01

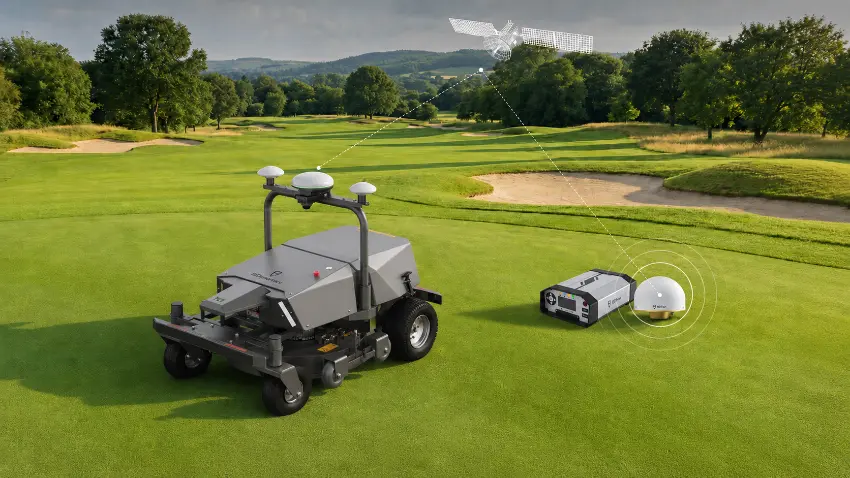

N10 CORS for Mowing

Providing stable RTK correction for mowing, the FJD Trion N10 CORS ensures precise and reliable positioning even in complex field conditions.

02

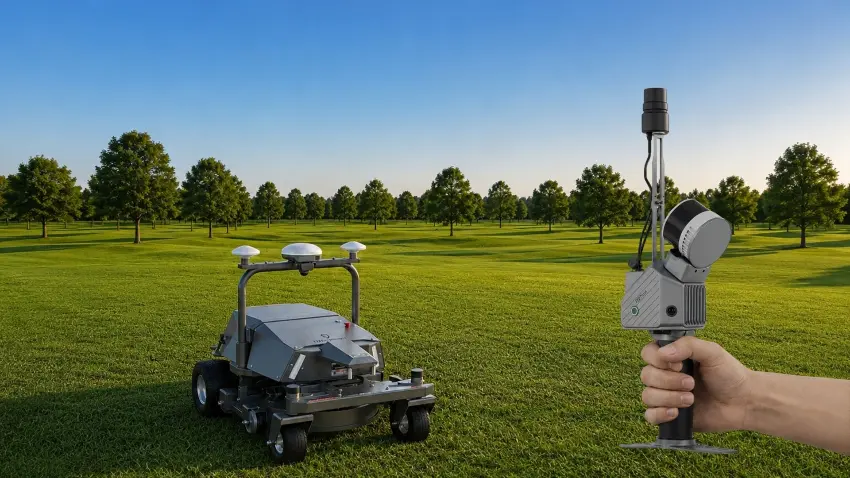

One Scan, Endless Reusability

Map in minutes with the FJD Trion S2 Max Scanner—no remote driving. Create a long-term digital true map, shared seamlessly across your entire robot fleet.

03
GolfMind Platform Integration

Use the GolfMind Platform to define map boundaries and manage all tasks in one place for streamlined digital operations.

04

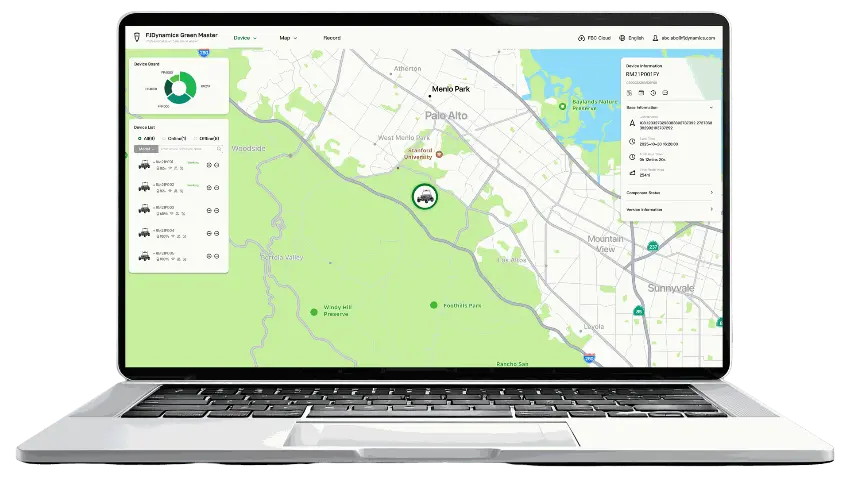

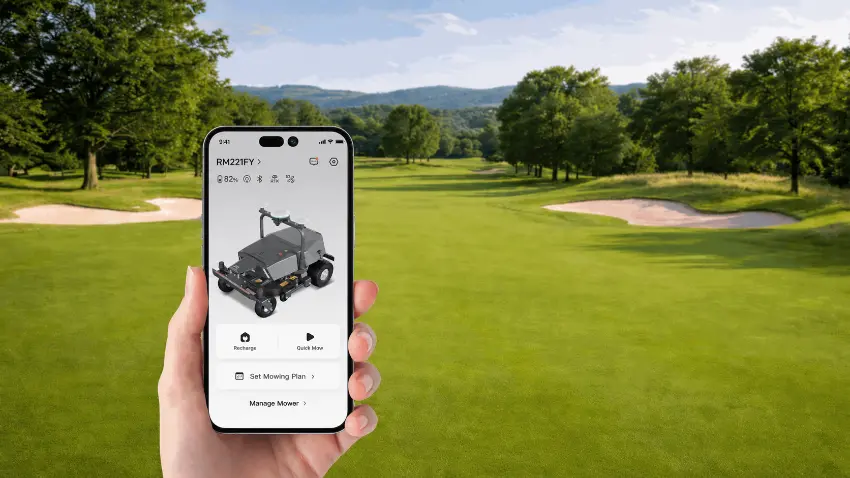

Total Control in Your App

Remotely control machines, schedule mowing plans, and monitor live or historical data.

Application Scenarios

Golf Courses
Sports F​ields
Orchards

SPECS

Mowing Capacity

72-hour max mowing area (fast charging mode)
108,000㎡ (26.7 acres)
72-hour max mowing area (standard charging mode)
93,600㎡ (23.1 acres)
Max mowing area per charge
12,000㎡ / 3 acres
Max climbing ability
20°
Recommended working slope
15°
Travel speed
  0–6 km/h / 0–3.7 mph


​*Mowing area is a theoretical value under standard test conditions. Actual efficiency may vary with terrain and grass conditions.
*Working slope depends on site conditions. On slopes, routes should be planned primarily uphill/downhill. Cross-slope mowing should be avoided or used with caution.

Complete Unit

Weight
170 kg / 375 lb
Dimensions

1330×853×980 mm / 52.4×33.6×38.6 in.

IP rating

IPX4

Operating temperature

  0–⁠45℃

Cutting System

Cutting height
  20–127 mm / 0.8–5 in.
Cutting width
635 mm / 25 in.

Battery & Charging

Battery capacity
  4 kWh
Max working time
  5 h
Charging time (standard)
  5 h
Charging time (fast charging)
  3 h
Battery rated voltage
  48 V DC

Factory Configuration

Flat blade

Discharge blade

Charging station

​Optional /​ Standard / Unavailable
