Add Supervised Autonomy to the Fairway Mowers You Already Own

FJD ATX

Auto Steering Kit

FJD ATX retrofits compatible fairway mowers for supervised autonomous operation — without replacing your existing fleet.

Check Mower Compatibility Download Brochure

Routine Fairway Mowing Still Ties Up Skilled Operators

Routine mowing takes skilled operators away from higher-value course work.​

Full autonomous fleet replacement can be a major investment.​

Manual workflows are hard to track, repeat, and improve.

Retrofit Autonomy for Existing Mowers

Upgrade compatible fairway mowers already in service.
Start supervised autonomous mowing without replacing your entire fleet.
Connect existing equipment to digital tasks and remote supervision.

ATX HARDWARE

Meet the ATX kit.

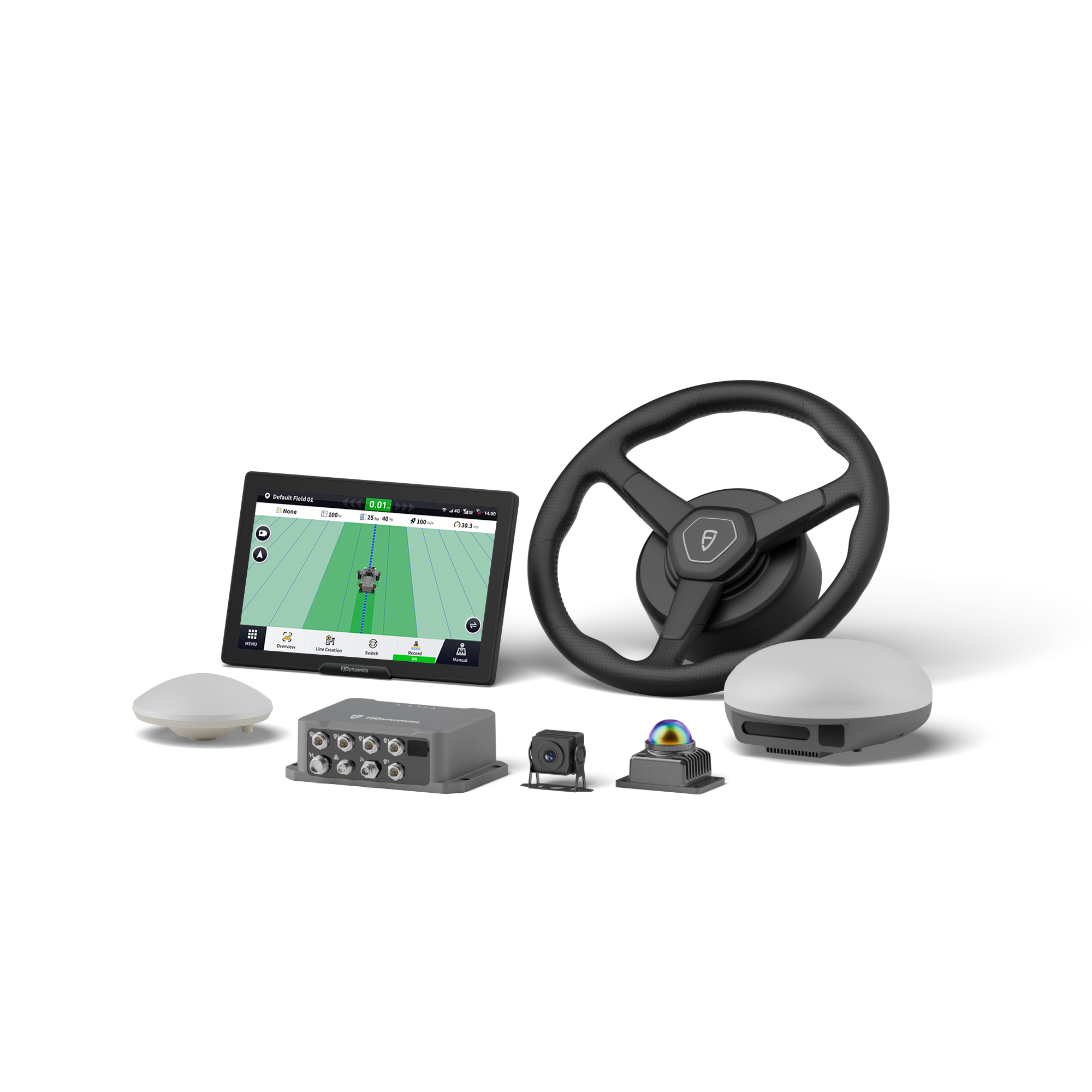

ATX auto steering kit and its seven hardware components

Control terminal

GNSS antenna

Controller

Electric steering wheel

GNSS receiver

Perception sensor

Camera

Faster Deployment

Plan and Repeat Routine Mowing Tasks

01
Planned mowing routes

Set mowing paths before work begins.

02
Task-based actions

Support mowing, turning, perimeter passes and deck-lift actions.

03
Repeatable settings

 Define mowing direction, lane spacing, clean-up passes and turning behaviour.


04
Less operator time

 Reduce the need for continuous manual driving during routine fairway work.


05
Night operation

 Extend working hours and improve daytime course availability.

Learn More

Navigation and Safety Built for the Course

Fusion Navigation
RTK and LiDAR help keep the mower on route around trees, boundaries and changing signal conditions.
Sensitive-area Planning
Add no-go zones for roads, bunkers, water hazards and maintenance areas during task setup.
Layered Protection
360° monitoring, obstacle avoidance, physical bumpers and emergency-stop functionality add multiple layers of protection during operation.
Safe and Reliable

Intuitive Processing Toolkits

The LM01 detects obstacles like balls, cones, or tools before contact and automatically stops to ensure safe, reliable marking.

From Course Scan to Autonomous Mowing

1

Scan with S2 Max

2

Build the Map in GolfMind


3

Send to the Mower


4

Monitor progress remotely


Application Scenarios

Golf Course
Sports Turf
Sod Farms

Autonomous mowing

See ATX on Your Fields

Book an on-field demonstration to see how PaintMaster Pro fits your field layouts, marking schedule and operating workflow.

Request a Brochure

SPECS

Control Terminal

 Operating System
Android 9
Network Mode
LTE / Wi-Fi / Bluetooth
 Display
 12.1 inch
 Power Supply
 9-36 V DC
 Interface
 CAN / RS-232 / Ethernet
Operating Temperature
 -20 to 70°C (-4 to 158°F)
IP Rating
 IP67

Electric Steering Wheel

Max Torque
20 N·m
Power Supply
9-36 V DC
IP Rating
IP66

GNSS Antenna

Dimensions
Ø142 × 66.5 mm (Ø5.59 × 2.62 in)
IP Rating
IP67

IMU

Accelerometer
±8 g
Gravity Sensor
±1000 dps
 Operating Temperature
-20 to 70°C (-4 to 158°F)

Angle Sensor

Operating Temperature
-20 to 70°C (-4 to 158°F)
IP Rating
IP67
