Multi-Field Management
Achieve simultaneous mowing on multiple sports fields and automatically go to the next field upon completion.
RTK & Vision Precision Navigation

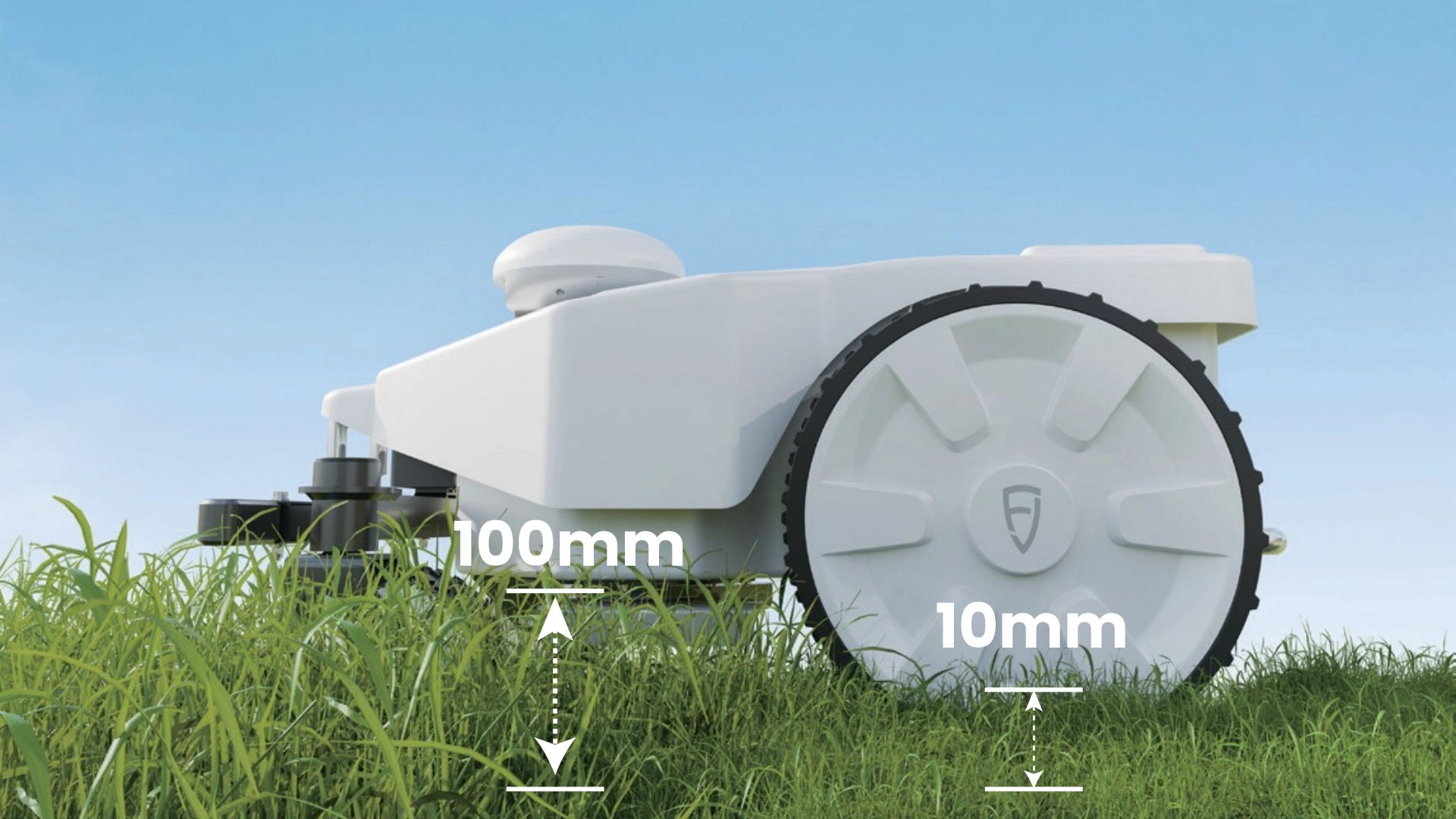

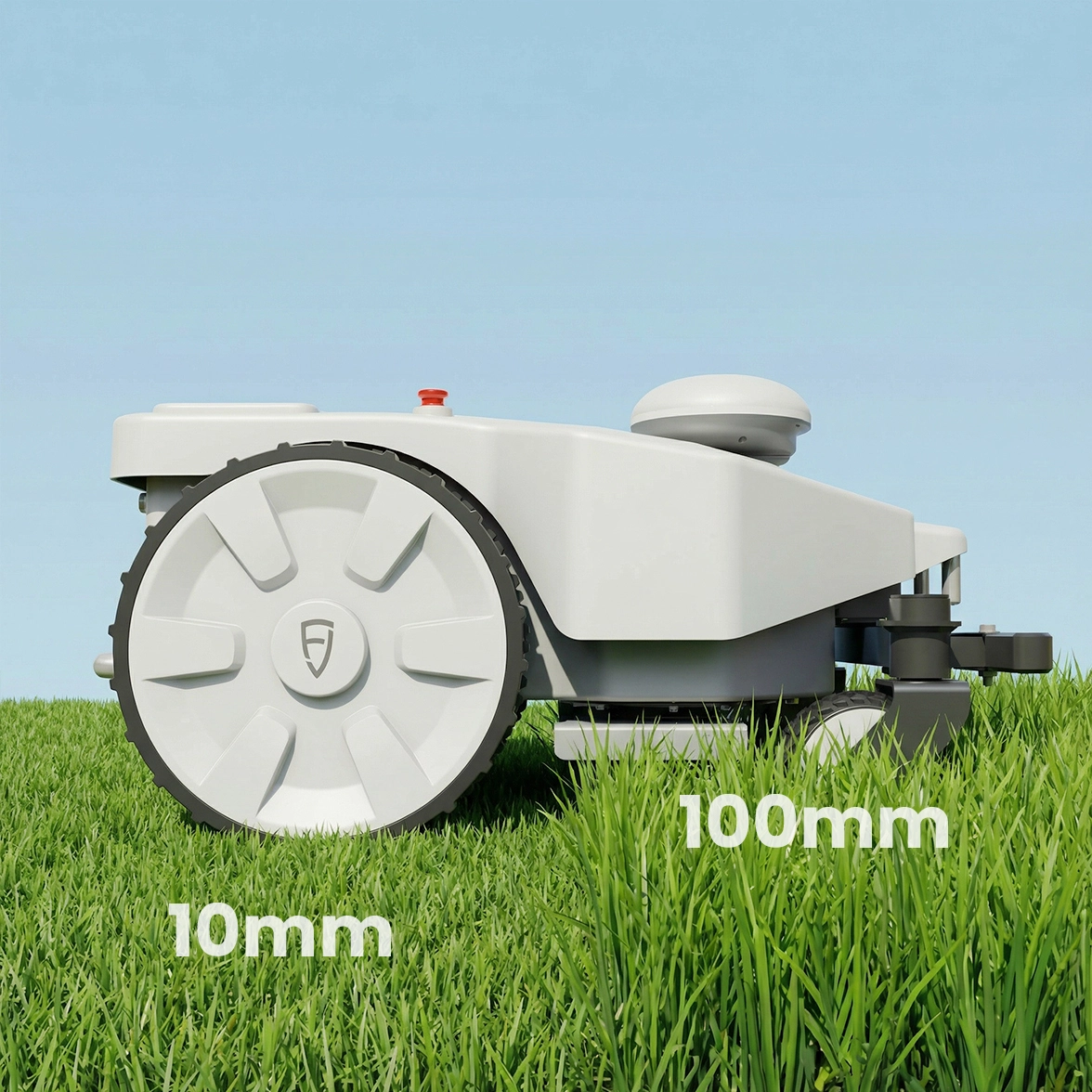

Precision Cutting 10–100 mm
Multi-Zone Management
Remote App Control
All-Day Autonomous Mowing
Mowing
Area
96,000m²
No Limits, No Downtime
Equipped with a 1 kWh battery, it can mow up to 8,000 ㎡ (2 acres) on a single charge, covering up to 96,000 ㎡ (23.7 acres) over 3 days.
Conquer 25° Slopes with Ease
Combining a high-performance motor with a compact chassis, FRX masters 25° hillsides as easily as flat ground.
RTK + Vision Navigation
Stable mowing performance even under the tree shades.

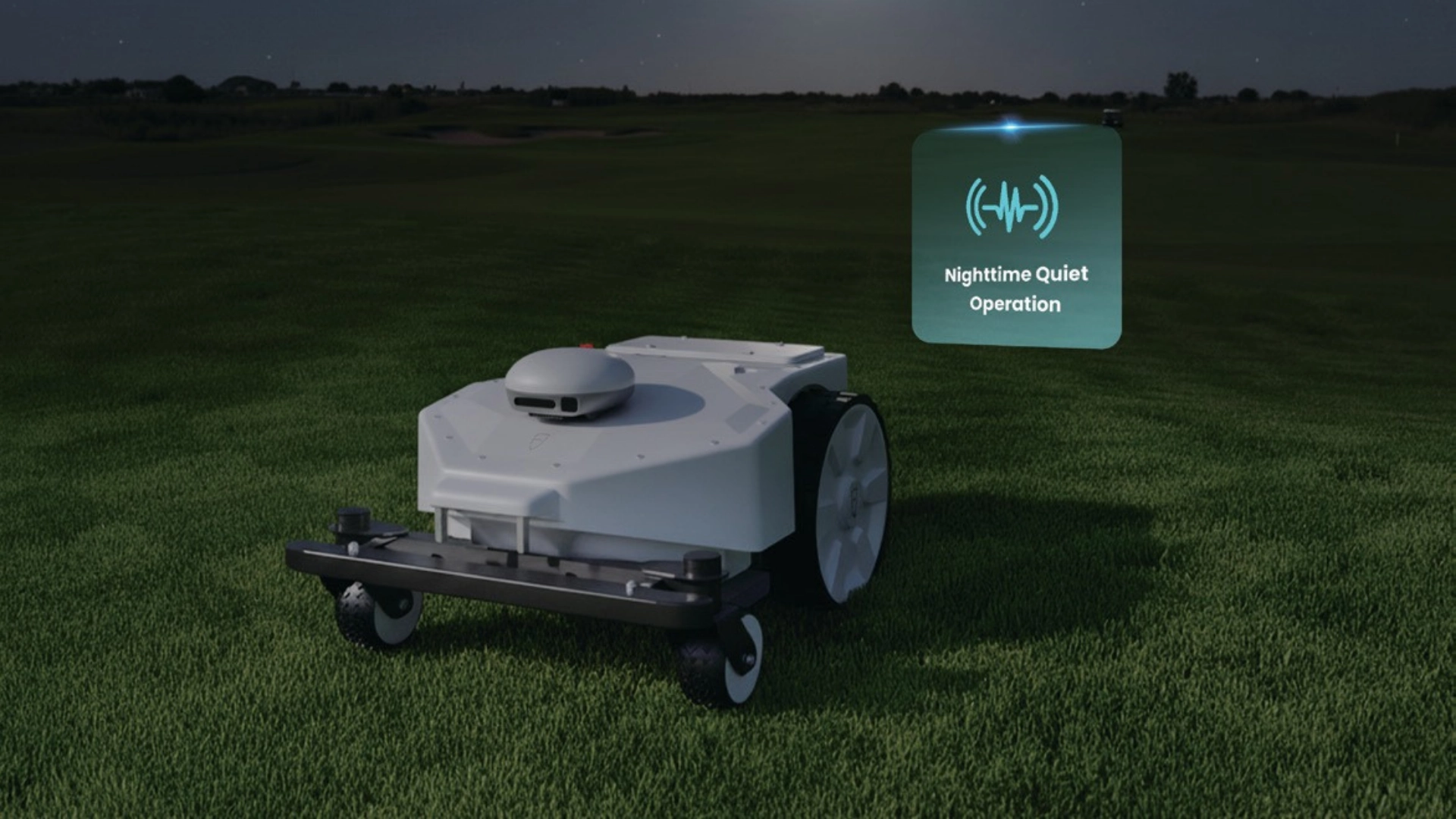

Nighttime Quiet Operation
Allow for silent mowing at night to maximize course availability during the day.
Flexible Charging Options

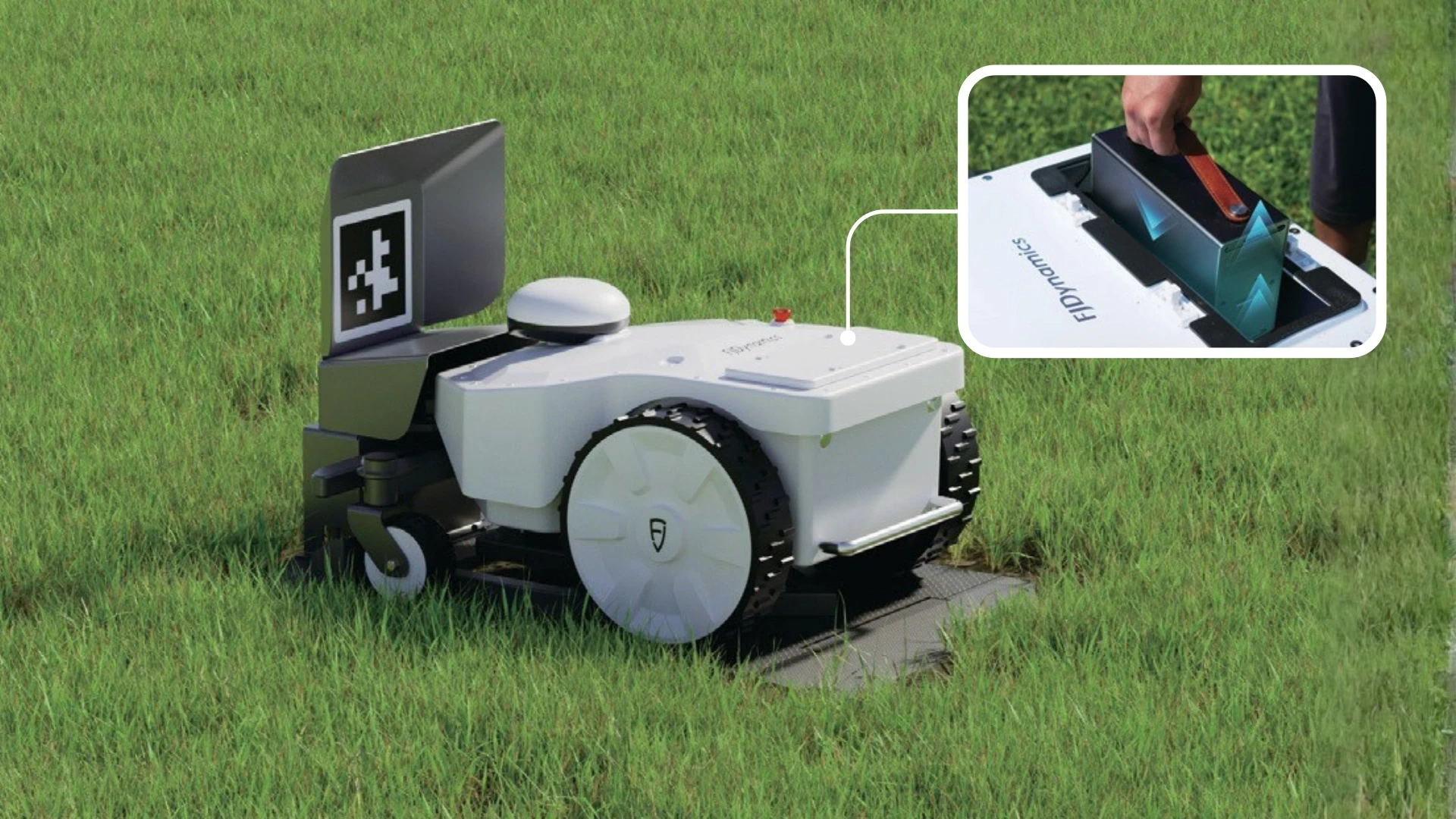

Fast battery swapping for 24/7 mowing. Auto-charging for fully unmanned operation.
Smarter Management, Safer Autonomy
Remote App Control and Image Feed
Monitor the status of the mower and control the operation from far away.
With image feed, you can check the situation of the field at any time without being on-site.
Anti-Theft Security System
Unauthorized use is blocked by PIN, while GPS tracking shows its exact location.
If lifted, moved, or taken outside its geofence, the alarm is instantly triggered.

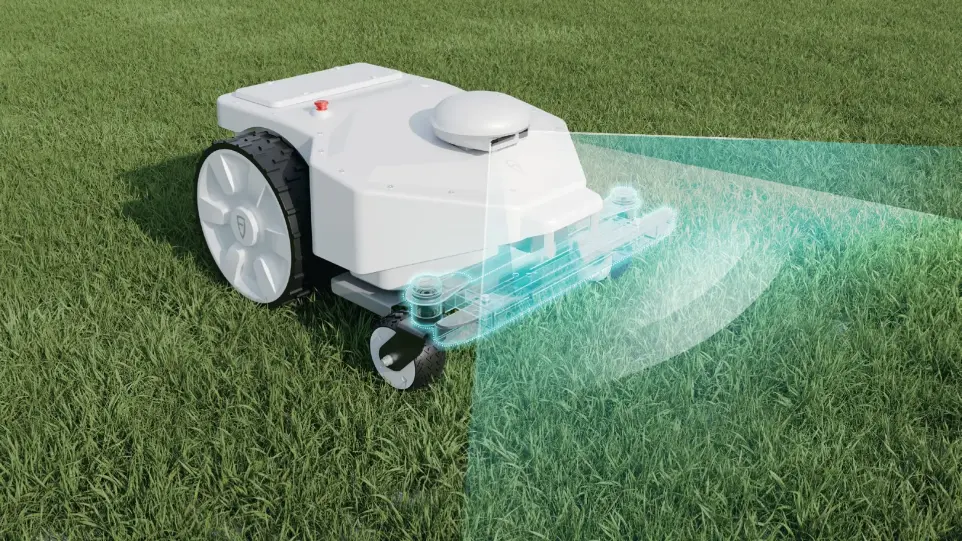

Dual Protection, Safety First

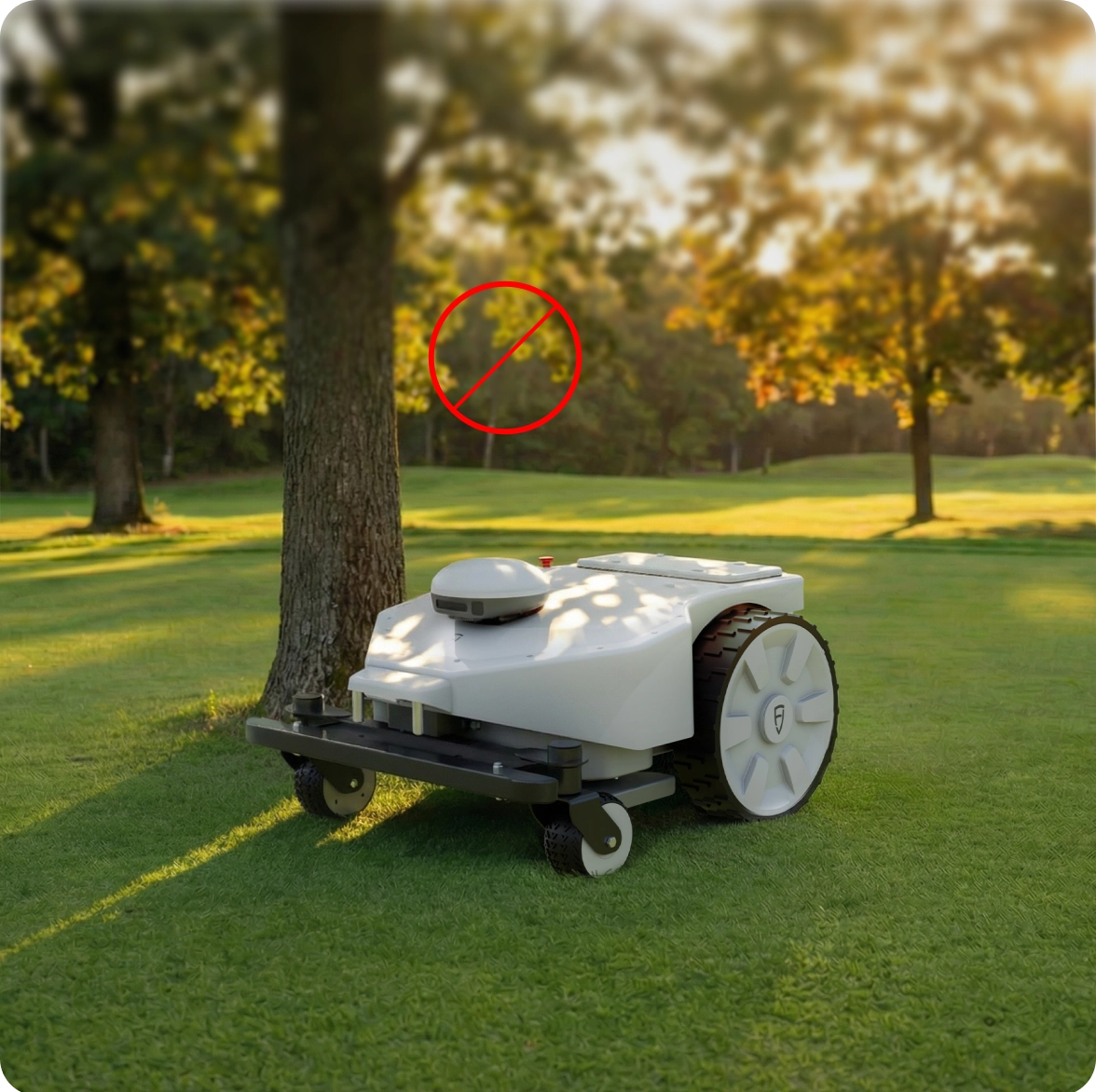

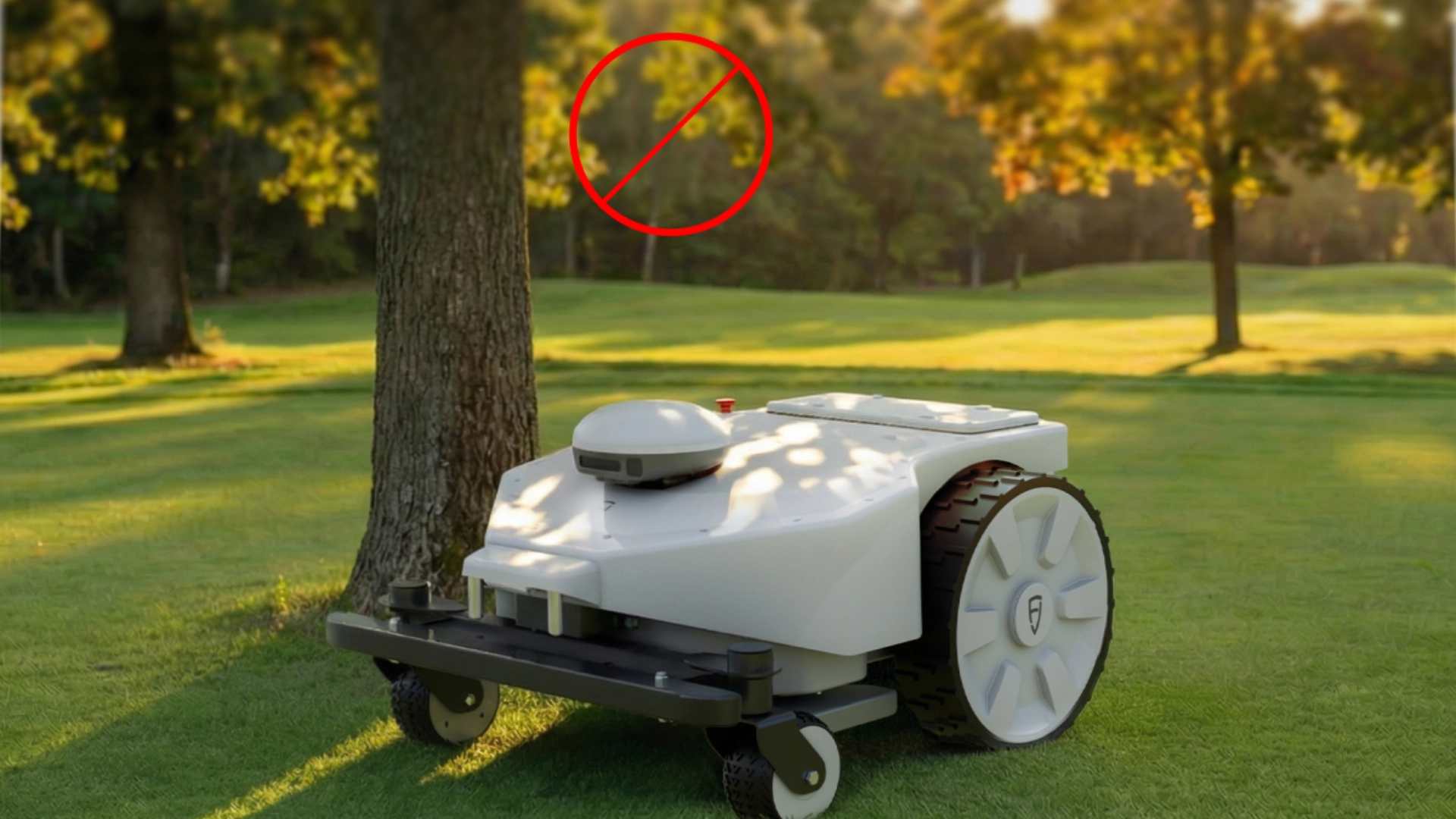

Vision fusion and physical bumper effectively avoid obstacles and ensure safe operation.
Anti-Theft Security System
Protect your mower with layered security — unauthorized use is blocked by PIN, while GPS tracking shows its exact location. If lifted, moved, or taken outside its geofence, the alarm is instantly triggered.

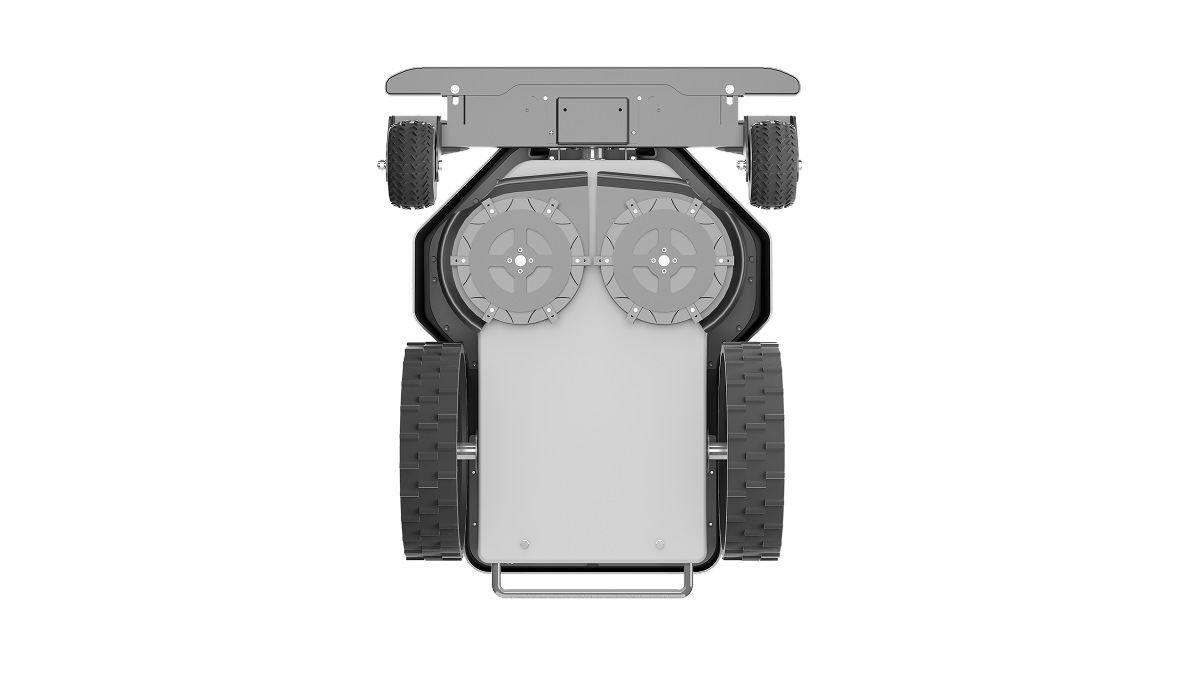

High-Performance Chassis
01
Front Suspension Chassis for Stable Mowing
Ensure stable operation on uneven terrain, providing a smooth mowing experience.
02

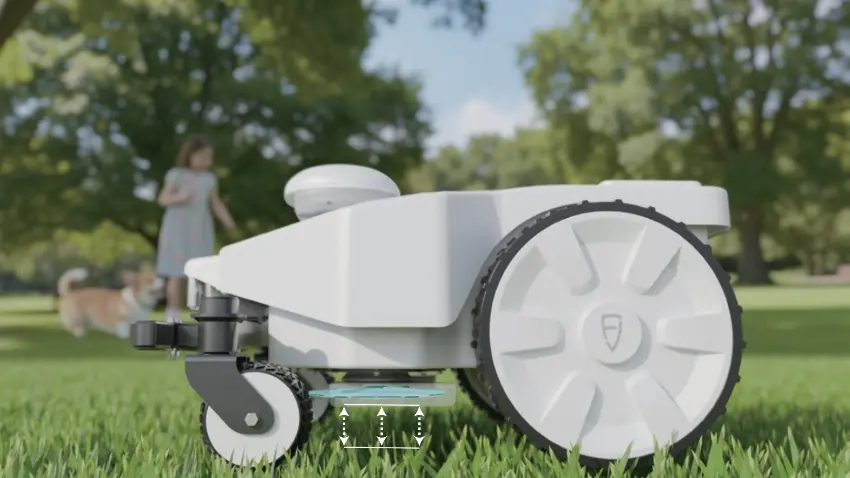

Cutting Disc Auto-Lifting
Adjust the mowing height in real time via remote control based on seasonal changes and mowing needs.
03

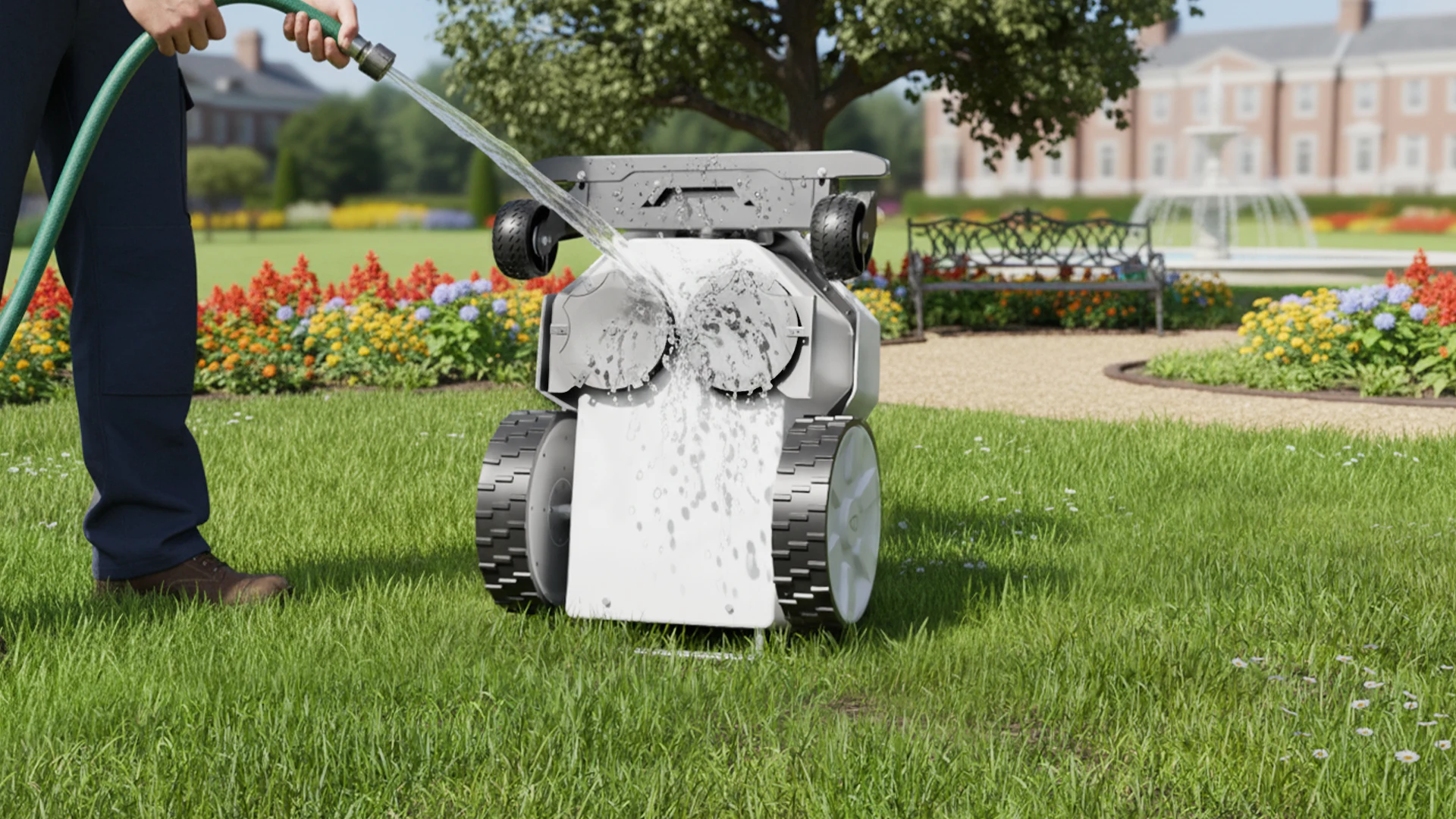

IPX5 Waterproof Design
Eliminate the worry of water immersion, whether it is rainy day operation or daily cleaning.
Grass Press Plate
Reduces contact between grass and the blade, minimizing drag and clogging for more efficient mowing.
Blade Guard
Minimizes the risk of hand injuries during daily use, maintenance, and cleaning.
The FRX robotic lawn mower works seamlessly with N10 CORS, V4e and GolfMind, enabling precise mapping, smart management, and efficient mowing across diverse field conditions.

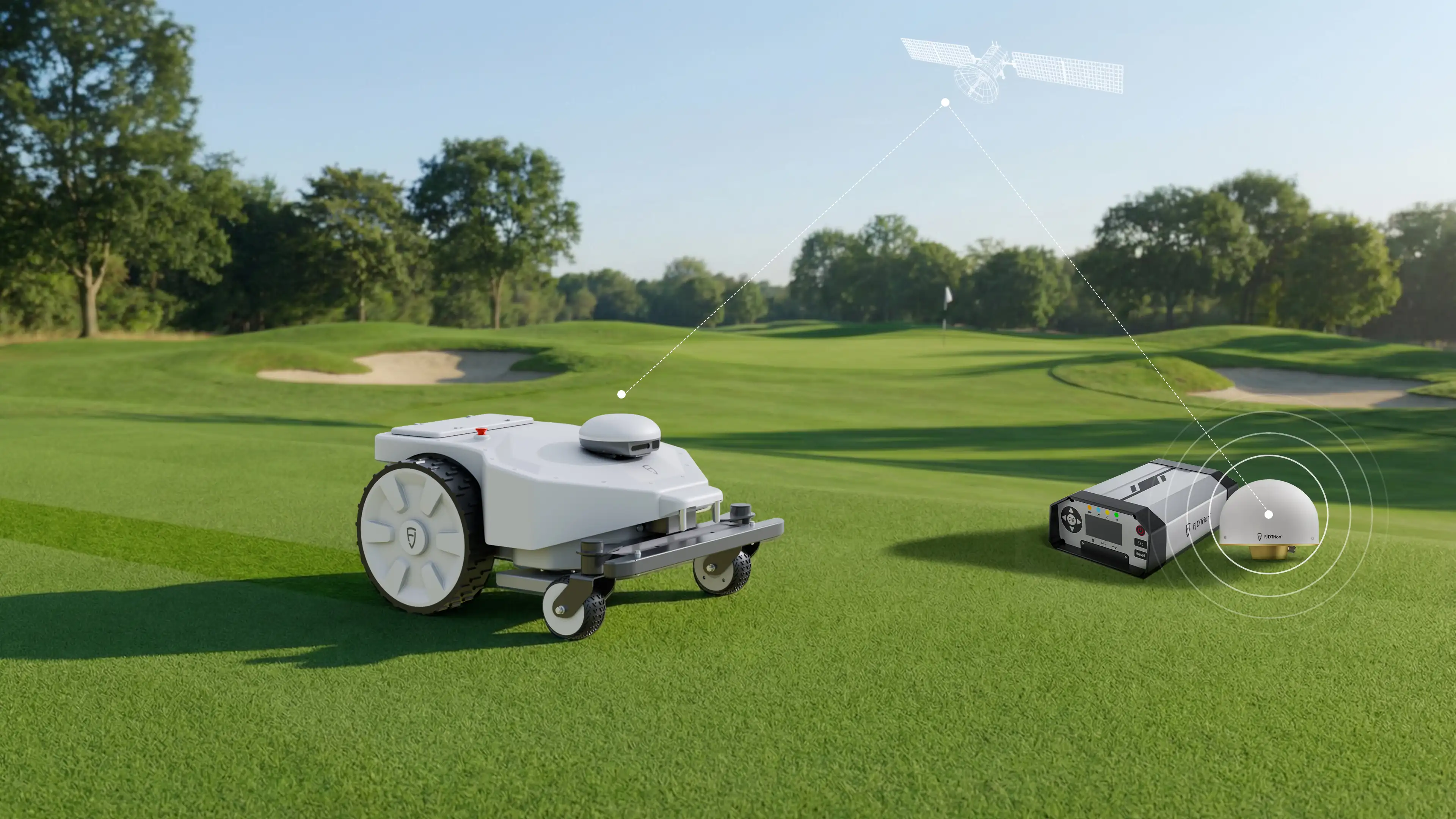

N10 CORS for Mowing
Providing stable RTK correction for mowing, the FJD Trion™ N10 CORS ensures precise and reliable positioning even in complex field conditions.

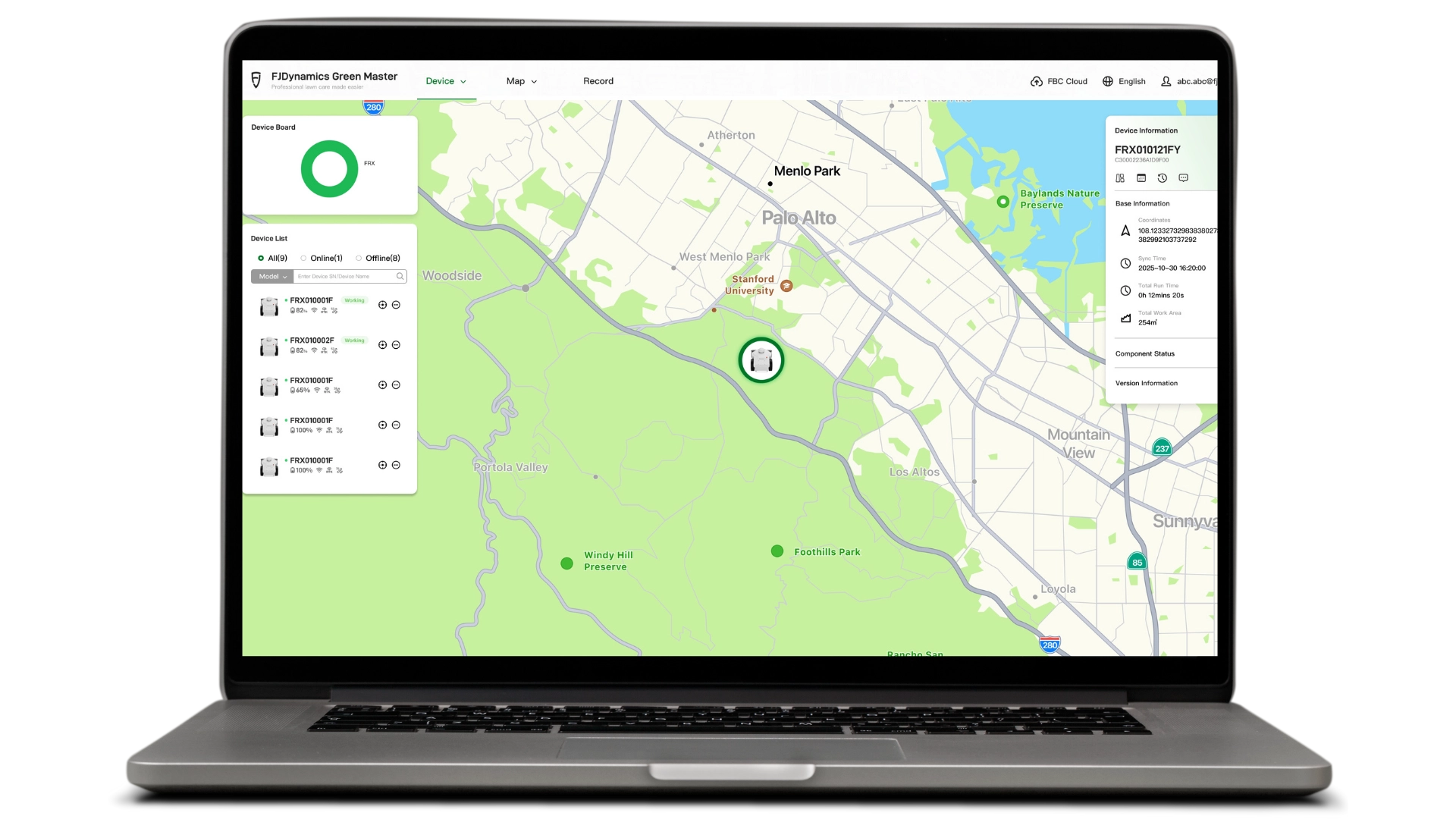

GolfMind Platform Integration
Use the GolfMind Platform to define map boundaries and manage all tasks in one place for streamlined digital operations.

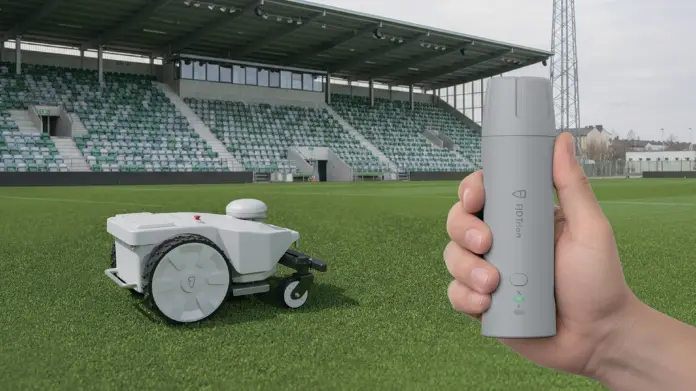

V4e Easy Mapping
Optional handheld marker for fast mapping in minutes—no mower needed onsite.
Application Scenarios
Golf Course
Sports Field
Public Green Space
SPECS
Mowing Capacity
Fast battery swapping mode*
72h Maximum coverage 96,000m² (23.7 acres)
24h Maximum coverage 32,000m² (7.9 acres)
24h Maximum coverage 32,000m² (7.9 acres)
Automatic charging mode
72h Maximum coverage 60,000m² (14.8 acres)
24h Maximum coverage 20,000m² (4.9 acres)
24h Maximum coverage 20,000m² (4.9 acres)
Max mowing area per charge*
8000 m²
Max working slope*
25°
Front suspension chassis
Boundary type
Virtual wire
Mowing pattern
Customized angle mowing
*Mowing area is a theoretical value under standard test conditions. Actual efficiency may vary with terrain and grass conditions.
*Working slope depends on site conditions. On slopes, routes should be planned primarily uphill/downhill. Cross-slope mowing should be avoided or used with caution.
*Working slope depends on site conditions. On slopes, routes should be planned primarily uphill/downhill. Cross-slope mowing should be avoided or used with caution.
Complete Unit
Weight
83.7 kg
Dimensions
1278*782*739.9 mm / 50.3*30.8*29.1 in.
Software update
OTA
Connectivity
4G, Wireless connectivity
IP rating
IPX5
Cutting System
Cutting height
10–100 mm / 0.4-4 in.
Cutting width
520 mm / 20.5 in.
Travel speed
0–4 km / h
Cutting disc
(pivoting razor blades per disc*6)
2
Battery & Charging
Charging mode
Manual & automatic
Fast battery swapping
Battery performance
320 min
Charging time*
150 min (0–100%, 1 kWh, fast charging)
*Standard charging: 300 min (0–100%, 1 kWh)
150 min (0–100%, 0.5 kWh))
Positioning & Navigation
Positioning
RTK & vision
NTRIP
FJD base station & CORS station
Factory Configuration
Complete mower
| Portable charger |
Auto-charging station
1 kWh battery
High-strength cutting blade
Handheld point maker
FJD base station
Independent anti-theft module
Optional /
Standard /Unavailable
Standard /Unavailable
*Calculated based on 24-hour use. The actual coverage depends on your specific working hours.
